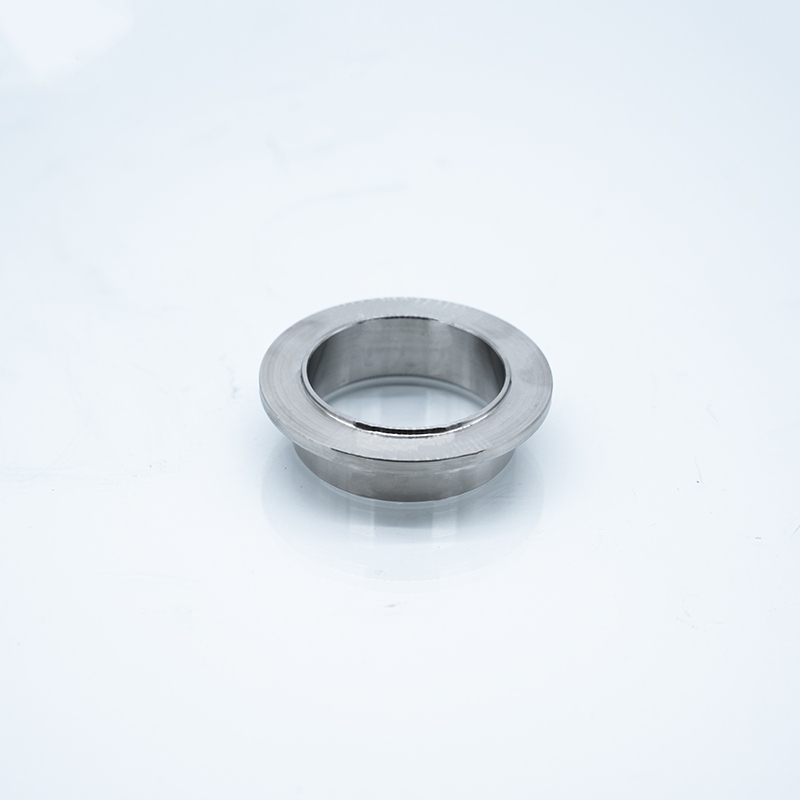

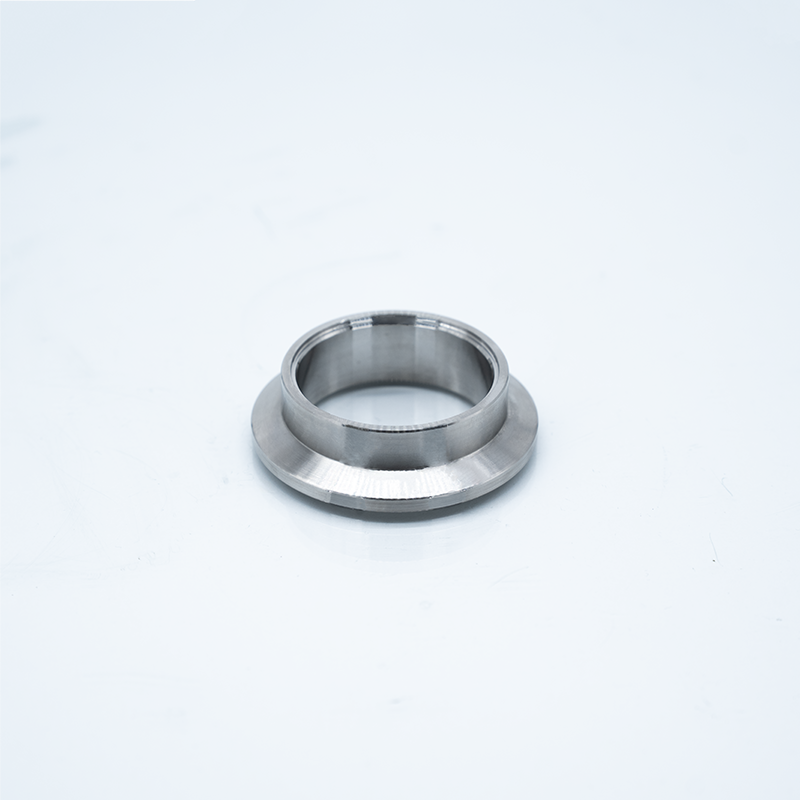

CT2RX/CT3RX/CT4RX Dual V-Band Turbine Housing Manifold Side Inlet Flange (.63/.82/1.06)

SKU: 950019-1
$49.00
$49.00 Save $-49.00 (%)
Shipping calculated at checkout.
in stock
Go to cart
Go to cart
Logo for GOVX ID, a service used to verify military, first responder, nurse or teachers to qualify them for discounts

Discount available for Military, First Responders, Medical Workers and Teachers

CT2RX/CT3RX/CT4RX V-Band Flange – Manifold Side (For Dual V-Band Turbine Housing)

The CT2RX/CT3RX/CT4RX Manifold Side V-Band Flange is CNC-machined from 304 stainless steel for a precise, durable fit with dual V-band turbine housings.

Key Features:

  • Fits manifold side of dual V-band turbine housings

  • Precision stainless steel construction

  • Withstands high heat, pressure, and corrosion

  • Compatible with CT2RX/CT3RX/CT4RX clamps and housings

Dimensional Specifications:

  • Flange ID: 1.984" (50.4mm)

  • Flange Counterbore ID: 2.173" (55.2mm)

  • Flange OD (Weld Side): 2.374" (60.3mm)

  • Overall Flange Height: 0.850" (21.6mm)

  • Flange Apex Width: 0.141" (3.6mm)

  • Male Retainer OD: 2.114" (53.7mm)

  • Overall Flange OD: 3.000" (76.2mm
