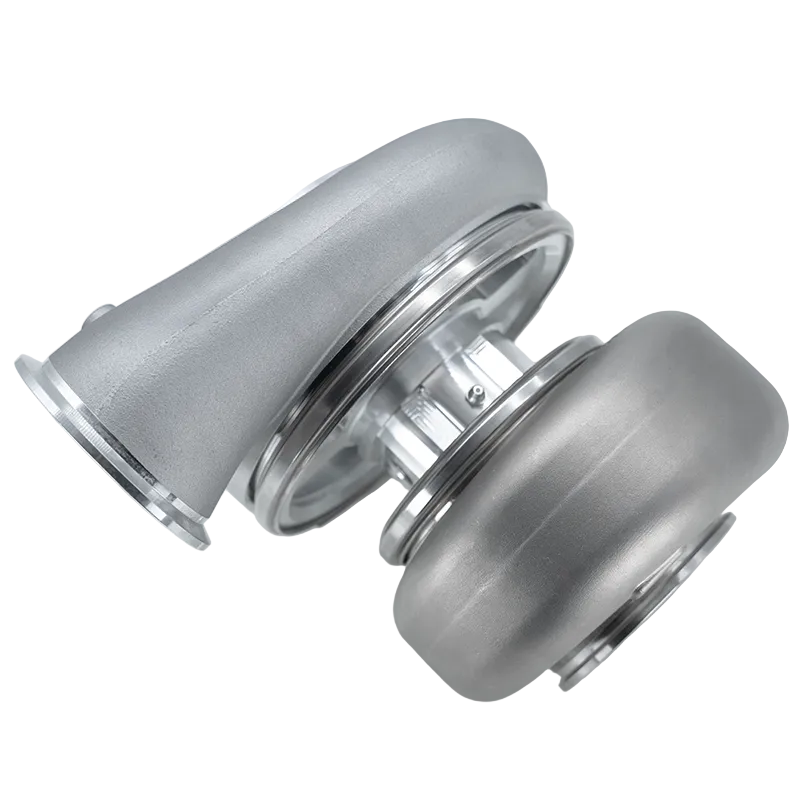

NEW CT5RX-9298 TRIPLEX CERAMIC BALL BEARING OIL-LESS WATER COOLED TURBOCHARGER (2200 HP)

CT5RX-9298 2200HP Triplex Ceramic Oil-Less Water-Cooled Ball Bearing Super-Core

Reference: 539298-3

Product Description

The CT5RX-9298 is a cutting edge 2200HP Triplex Ceramic Ball Bearing Oil-Less Water-Cooled turbocharger designed to deliver high performance, reliability, and versatility. By eliminating traditional oil lines, this advanced unit reduces complexity while maintaining water cooling, ensuring optimal thermal management under extreme conditions.

Features

·        Patented Triplex Ceramic Ball Bearing Oil-Less Water-Cooled System: Ensures ultra-smooth operation, faster spool times, and improved durability.

·        Engineered for High-Performance Applications, Suitable for Both Street and Track Use. Recommended for engine bay, mid mount and remote mount turbo systems.

·        Lightweight Billet Aluminum Center Section

·        CTRX Ultra Slim Hub 7+7 Compressor Wheel 92MM

·        High Flow 9 Bladed Turbine Wheel 98MM

·        Standard Rotation Configuration

·        Available in V-Band Inlet SS Turbine Housings

·        Fully Rebuildable & Upgradeable

·        Water-Cooled Bearing Housing 3/8 NPT In/Out Female Ports for Engine Water-Cooling Connection

·        Maintenance Grease Fitting

·        Horizontal & Vertical Installation

·        Weight:  30 LBS

Product Specifications

Min HP 800 - Max HP 2200

Min Displacement (L) 2.0 - Max Displacement (L) 8.0

Compressor Housing Specs

 Inlet 5" - Outlet 3.5" A/R: .63

Pressure Port: 1/8 NPT

Compressor Wheel Specs

Compressor Inducer (mm) 92

Compressor Major (mm) 128

Turbine Wheel Specs

Turbine Inducer (mm) 108

Turbine Exducer (mm) 98

Recommended Service Interval

·       Comp Turbo recommends applying 8 pumps of grease every 3,000 miles under normal street use.

·       For extreme street use applications, apply 8 pumps of grease every 1,500 miles

·       For extreme drag race applications apply 8 pumps of grease prior to race event.
